LEAP Palletizer
LEAP Palletizer
| LEAP Palletizer General Machine Specification | |
|---|---|
| Robot Arm - | Articulate 4 axis robot |
| Maximum reach : | > Ø6000mm |
| Maximum payload : | ≥ 250kg |
| Maximum Load Height : | > 2800mm from pallet height |
| Maximum palletizing speed : | Min. 3.7s/cycle depending on path and load. |
| MTBF for Robot : | > 70,000hrs |
| Maximum SKU accommodation : | maximum 4 SKU with ISO pallet |
| AC gear Motor : | SEW Eurodrive |

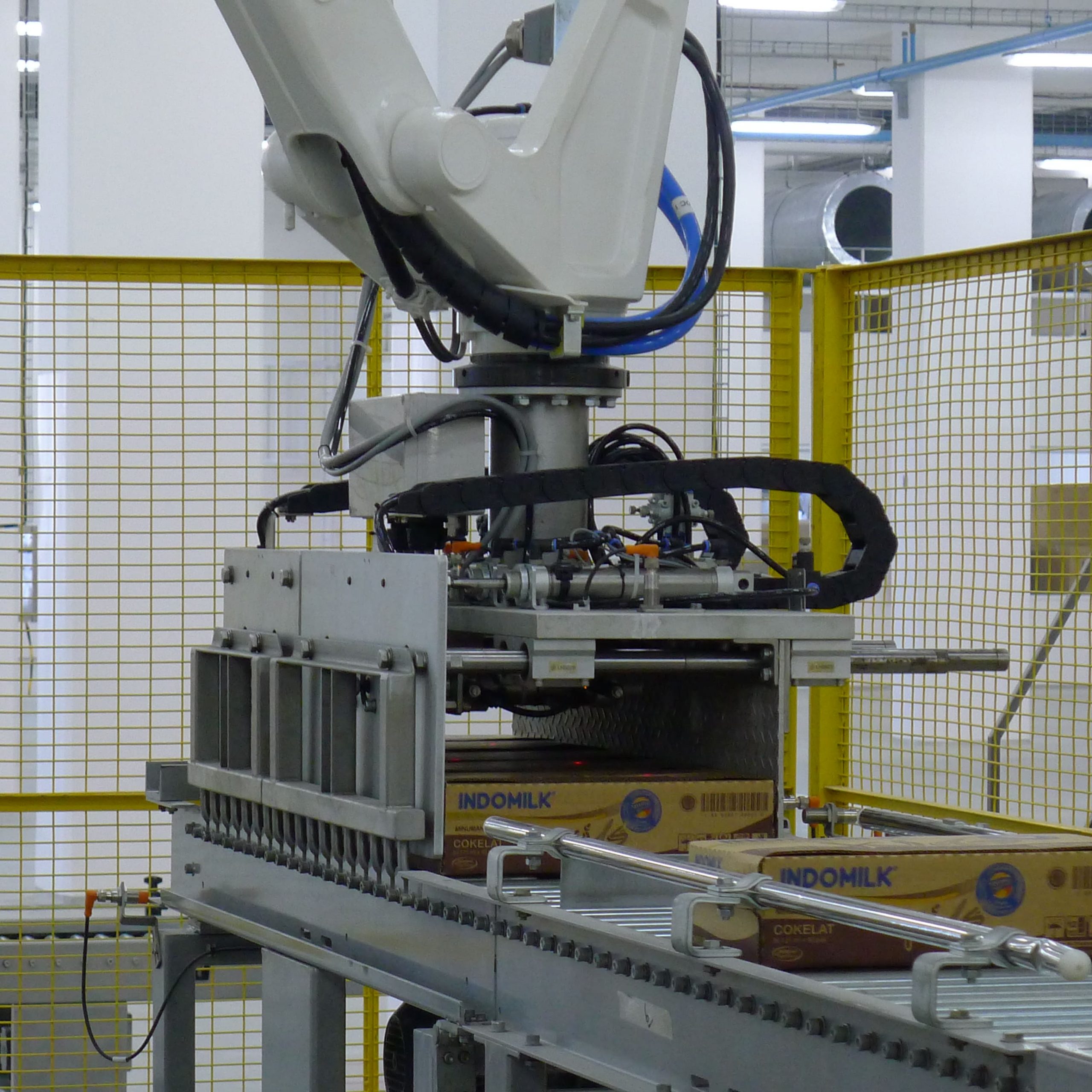

| Gripper : | o Mechanical Gripping : o Suction: Vacuum Venturi System with plant compressed air Vacuum System with Blower Vacuum system with Vacuum generator |
| Position Repeatability : | +/- 0.05 mm |
| Position Accuracy : | +/- 0.2 mm |
| Linear Path Accuracy : | +/- 2.2 mm |
| Noise Level : | < 73 dB (A) |
| Protection Class : | IP67 , CE |
| Operation Environment : | ±0°C to +50°C Max. 95% RH at constant temperature |
| Robot Arms Supervision : | Collision Detection option |
| Products Handling Capability |
|---|
| RSC cartons with optional tape seal checking (99%) Wraparound Carton Bags Pails cardboards |

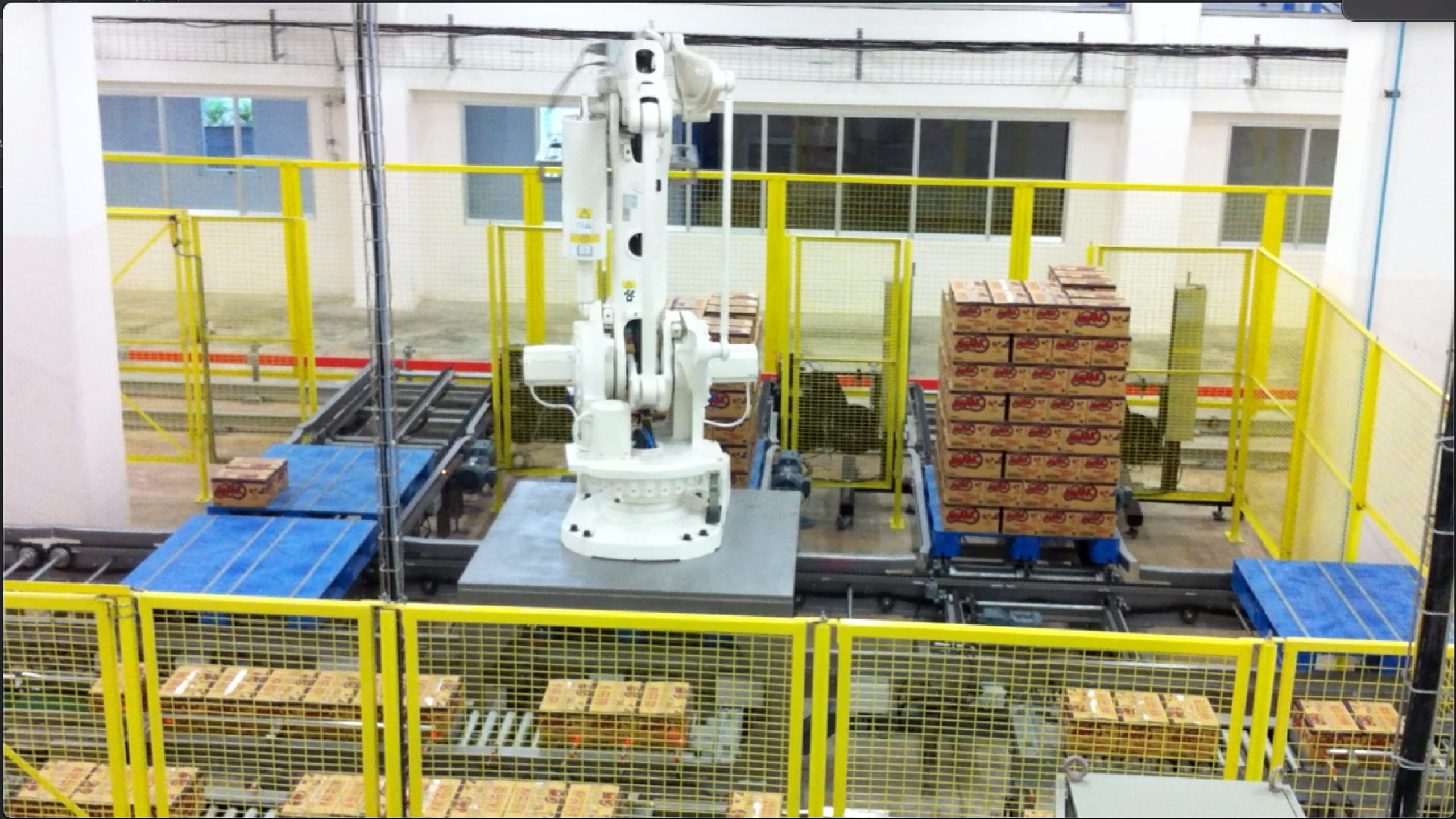

LEAP Palletizer Project Gallery
